Vehicle interface design#

Abstract#

The Vehicle Interface component provides an interface between Autoware and a vehicle that passes control signals to the vehicle’s drive-by-wire system and receives vehicle information that is passed back to Autoware.

1. Requirements#

Goals:

  • The Vehicle Interface component converts Autoware commands to a vehicle-specific format and converts vehicle status in a vehicle-specific format to Autoware messages.
  • The interface between Autoware and the Vehicle component is abstracted and independent of hardware.
  • The interface is extensible such that additional vehicle-specific commands can be easily added. For example, headlight control.

Non-goals:

  • This design does not define the accuracy of the responses from the vehicle.
  • This design does not define the response speed.

2. Architecture#

The Vehicle Interface component consists of the following components:

  • A Raw Vehicle Command Converter component that will pass through vehicle commands from the Control component if velocity/acceleration control is supported by the drive-by-wire system. Otherwise, the Control commands will be modified according to the control method (for example converting a target acceleration from the Control component to a vehicle specific accel/brake pedal value through the use of an acceleration map). In Autoware, the autoware_raw_vehicle_cmd_converter package does this conversion.
  • A Vehicle Interface component (vehicle specific) that acts as an interface between Autoware and a vehicle to communicate control signals and to obtain information about the vehicle (steer output, tire angle, etc.)

Each component runs as one or more ROS 2 nodes that the vehicle launch package starts. The component has no plugin mechanism that loads or unloads parts while Autoware runs. autoware_raw_vehicle_cmd_converter registers its node as a ROS 2 component, but its own launch file and awsim_labs_vehicle_launch start it as a separate process. Vehicle-specific interfaces such as pacmod_interface build normal executables. The mechanism of the Vehicle Interface component is depicted by the following figures:

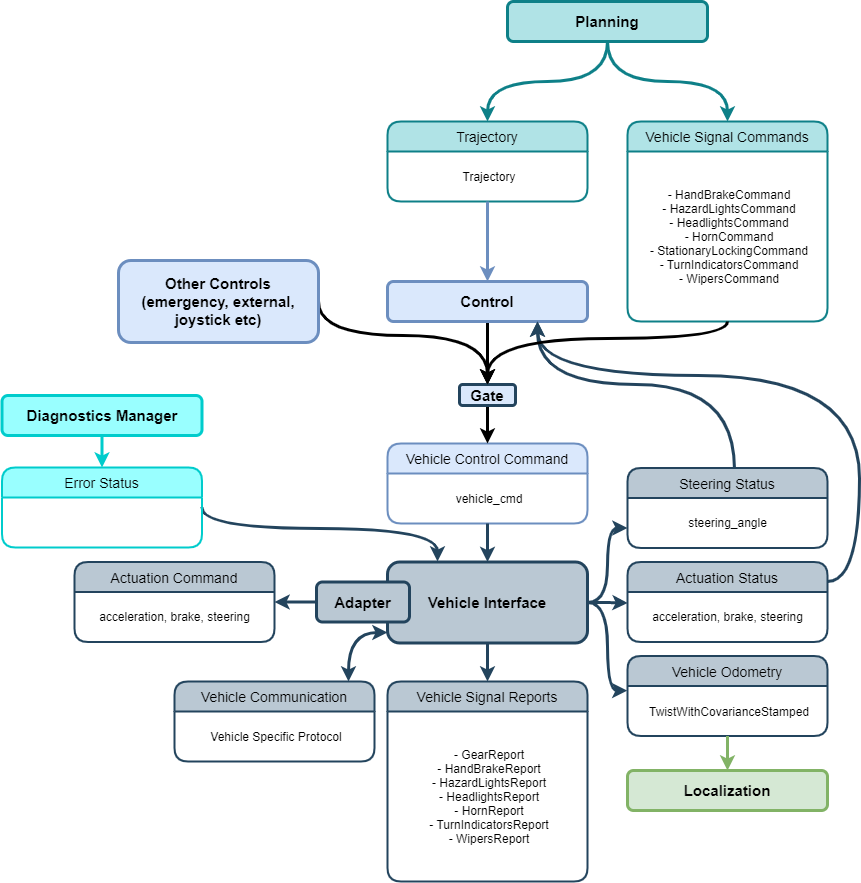

Planning sends the trajectory to control, and turn indicator and hazard light commands to the vehicle command gate. Control and other command sources send commands to the gate. The gate sends the vehicle commands (control, gear, turn indicators, hazard lights, and the optional emergency command) to the vehicle interface. The vehicle interface works with the adapter and the vehicle, and outputs the steering status, the velocity status, the vehicle reports, and the door status.PlanningControlTrajectory followerTrajectoryVehicle command gateOther command sourcesMRM, external, joystickTurn indicators, hazard lightsVehicle interfaceVehicle specificVehicle commands: control, gear,turn indicators, hazard lights,emergency (optional)Adapterraw_vehicle_cmd_converterActuation command, statusVehicleVehicle-specific protocolSteering statusTo controlVelocity statusTo localization, as a twistVehicle reportsGear, turn indicators,hazard lights, control modeDoor statusOptional, to the AD API
The commands that go into the vehicle interface and the status that comes out of it.

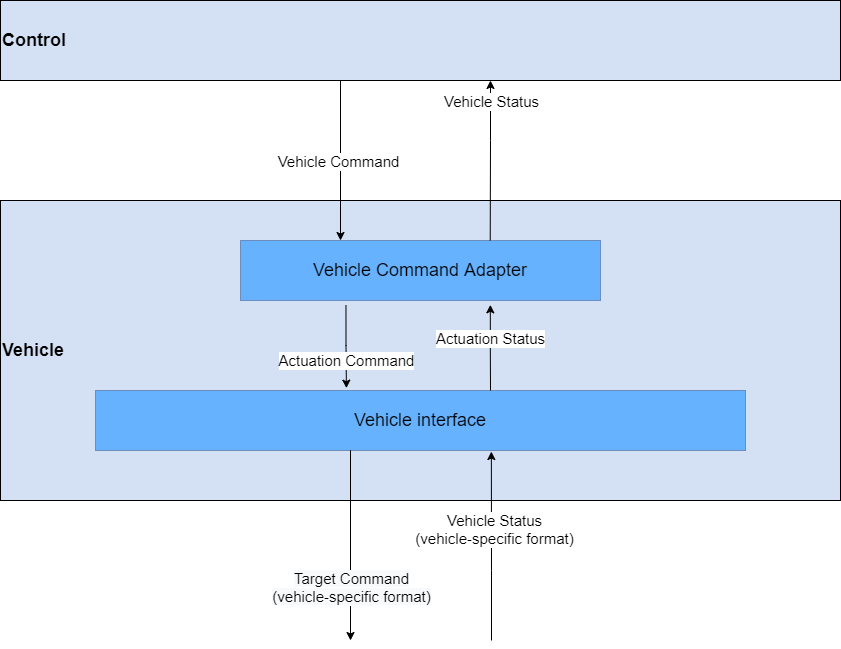

Control sends the control command to the vehicle command adapter. The adapter sends the actuation command to the vehicle interface and receives the actuation status. The vehicle interface sends the target command to the drive-by-wire system in a vehicle-specific format, receives the vehicle status, and sends the vehicle status to control.VehicleControlControl commandVehicle statusVehicle command adapterraw_vehicle_cmd_converterActuation commandActuation statusVehicle interfaceVehicle-specific driverTarget command(vehicle-specific format)Vehicle status(vehicle-specific format)Drive-by-wire system
The vehicle command adapter sits between the control component and the vehicle interface.

The tier4_vehicle_launch package of autoware_launch starts the vehicle component. It runs robot_state_publisher with the vehicle and sensor description, and it includes the vehicle_interface.launch.xml file of the vehicle launch package (<vehicle_model>_launch) when launch_vehicle_interface is true. Each vehicle launch package decides which nodes to run. For example, awsim_labs_vehicle_launch runs autoware_raw_vehicle_cmd_converter, and sample_vehicle_launch runs no vehicle interface node.

3. Features#

The Vehicle Interface component can provide the following features in functionality and capability:

  • Basic functions
    • Converting Autoware control commands to vehicle specific command
    • Converting vehicle specific status information (velocity, steering) to Autoware status message
  • Diagnostics
    • List available features
    • Provide a warning if the Control component tries to use a feature that is not available in the Vehicle Interface component

Additional functionality and capability features may be added, depending on the vehicle hardware. Some example features are listed below:

  • Safety features
    • Disengage autonomous driving via manual intervention.
      • This can be done through the use of an emergency disengage button, or by a safety driver manually turning the steering wheel or pressing the brake
  • Optional controls
    • Turn indicator
    • Handbrake
    • Headlights
    • Hazard lights
    • Doors
    • Horn
    • Wipers

Autoware has standard messages for the turn indicators, the hazard lights, the gear, and the doors. The other optional controls need vehicle-specific messages.

4. Interface and data structure#

The autoware_component_interface_specs package of Autoware Core defines the topics between the control component and the vehicle interface. The messages are in autoware_vehicle_msgs and autoware_control_msgs. The vehicle interface page gives the full list with links to the message definitions.

Inputs from Autoware#

The vehicle command gate of the Control component sends the control, gear, turn indicators, hazard lights, and emergency commands. Planning makes the turn indicators and hazard lights commands, and the shift decider makes the gear command. The operation mode transition manager calls the control mode request service, and the AD API calls the door command service.

InputTopicType
Control command/control/command/control_cmdautoware_control_msgs/msg/Control
Gear command/control/command/gear_cmdautoware_vehicle_msgs/msg/GearCommand
Turn indicators command/control/command/turn_indicators_cmdautoware_vehicle_msgs/msg/TurnIndicatorsCommand
Hazard lights command/control/command/hazard_lights_cmdautoware_vehicle_msgs/msg/HazardLightsCommand
Control mode request/control/control_mode_requestautoware_vehicle_msgs/srv/ControlModeCommand (service)
Emergency command (optional)/control/command/emergency_cmdtier4_vehicle_msgs/msg/VehicleEmergencyStamped
Door command (optional)/vehicle/doors/commandautoware_adapi_v1_msgs/srv/SetDoorCommand (service)

The control command has a lateral part (steering tire angle and rotation rate) and a longitudinal part (velocity, acceleration, and jerk). If the vehicle needs mechanical inputs, the raw vehicle command converter changes the control command to an actuation command (accel, brake, and steering values) on /control/command/actuation_cmd.

Outputs to Autoware#

OutputTopicType
Velocity status/vehicle/status/velocity_statusautoware_vehicle_msgs/msg/VelocityReport
Steering status/vehicle/status/steering_statusautoware_vehicle_msgs/msg/SteeringReport
Gear status/vehicle/status/gear_statusautoware_vehicle_msgs/msg/GearReport
Turn indicators status/vehicle/status/turn_indicators_statusautoware_vehicle_msgs/msg/TurnIndicatorsReport
Hazard lights status/vehicle/status/hazard_lights_statusautoware_vehicle_msgs/msg/HazardLightsReport
Control mode/vehicle/status/control_modeautoware_vehicle_msgs/msg/ControlModeReport
Actuation status (optional)/vehicle/status/actuation_statustier4_vehicle_msgs/msg/ActuationStatusStamped
Door status (optional)/vehicle/doors/statusautoware_adapi_v1_msgs/msg/DoorStatusArray

The velocity status goes to the Localization component. The autoware_vehicle_velocity_converter package of the Sensing component converts it to geometry_msgs/msg/TwistWithCovarianceStamped. The control mode tells if the vehicle is under autonomous control or manual control.

5. Concerns, assumptions, and limitations#

Concerns#

  • Architectural trade-offs and scalability
  • The raw vehicle command converter uses the actuation messages of tier4_vehicle_msgs (ActuationCommandStamped and ActuationStatusStamped). autoware_vehicle_msgs now also defines ActuationCommandStamped and ActuationReportStamped, but the converter does not use them yet.

Assumptions#

  • The control command is for an Ackermann-style platform. If the vehicle has more than one steering tire, the steering tire angle is for a virtual tire at the average lateral position of the steering tires.
  • The interface list gives 10 Hz as the design rate of the velocity status and the steering status. The real rate depends on the vehicle interface. For example, autoware_simple_planning_simulator publishes them at 40 Hz. The control command comes at about 33 Hz.
  • A vehicle without gears simulates the gear behavior. A vehicle without turn indicators or hazard lights ignores those commands and reports them as disabled.

Limitations#

  • The control mode request supports these modes: AUTONOMOUS, AUTONOMOUS_STEER_ONLY, AUTONOMOUS_VELOCITY_ONLY, MANUAL, and NO_COMMAND. The control mode report also has DISENGAGED and NOT_READY.
  • Autoware has no standard message for the handbrake, the headlights, the horn, or the wipers.
