Autoware Index#

The Autoware Index is a registry of community ROS 2 packages that extend Autoware. It records which packages exist, where their source lives, and whether each one builds and passes tests against the latest Autoware release.

A regular source installation does not require the Autoware Index. Use it when you want community or extra packages that are not part of the default workspace: you select packages from the registry, generate a .repos file from your selection, and import it with vcs import like any other repos file.

There are two ways to generate the file:

• aw-index-cli: a command line tool that composes it from the registry.
• The browse site: its Repos builder composes and downloads the same file in your browser.

Using aw-index-cli#

1. Install the CLI with pipx.

   pipx install aw-index-cli   # first install
   pipx upgrade aw-index-cli   # update to the latest release


2. Compose the repos file from your Autoware workspace root (the cloned autoware directory). By default, it writes your selection to repositories/autoware-index.repos.

   cd autoware
   aw-index-cli compose --rosdistro jazzy --packages <package_name>


   You can also select whole repositories by their registry key, or filter by tags:

   # Pull in a whole repository entry by its registry key.
   aw-index-cli compose --rosdistro jazzy --repository <repository_name>

   # Select by tags. A package matches if it carries any of the listed tags.
   aw-index-cli compose --rosdistro jazzy --tags sensing perception

   # Select only the entries that are a Reference Design (aw-index-cli 0.5.0 or newer).
   aw-index-cli compose --rosdistro jazzy --reference-design


   When combined, the --packages, --repository, --tags, and --reference-design filters are ANDed. The file also includes the repositories of the registered packages that your selection depends on (index_dependencies in the registry), even when they do not match the filters. A Reference Design entry is a complete system that others can reproduce, for example Vision Pilot. Use the --rosdistro value that matches your ROS 2 distribution. The available distributions are listed in the autoware-index repository. At the Autoware 2.0.0 release, the registry has only the jazzy distribution.

3. Import the repositories and build your workspace as usual.

   vcs import src < repositories/autoware-index.repos
   rosdep install -y --from-paths src --ignore-src --rosdistro $ROS_DISTRO
   colcon build --symlink-install --cmake-args -DCMAKE_BUILD_TYPE=Release


   ⚠️ An imported repository may also contain packages that are not registered in the index. To build only what you selected, scope the build with colcon build --packages-up-to <package_name>.

Checking your workspace#

aw-index-cli check compares a composed autoware-index.repos file against the registry and the latest validation results. Run it from the workspace root. It finds the file automatically.

aw-index-cli check

It exits with 0 when all selected packages pass validation and match the registry, and with 1 when a package fails validation, has drifted from the registry, or was removed. It exits with 2 when it cannot run, for example when the .repos file is missing or the registry does not load. This makes it suitable as a CI gate after vcs import.

Listing packages#

To see the registered packages and their latest validation status from the terminal:

aw-index-cli list --rosdistro jazzy

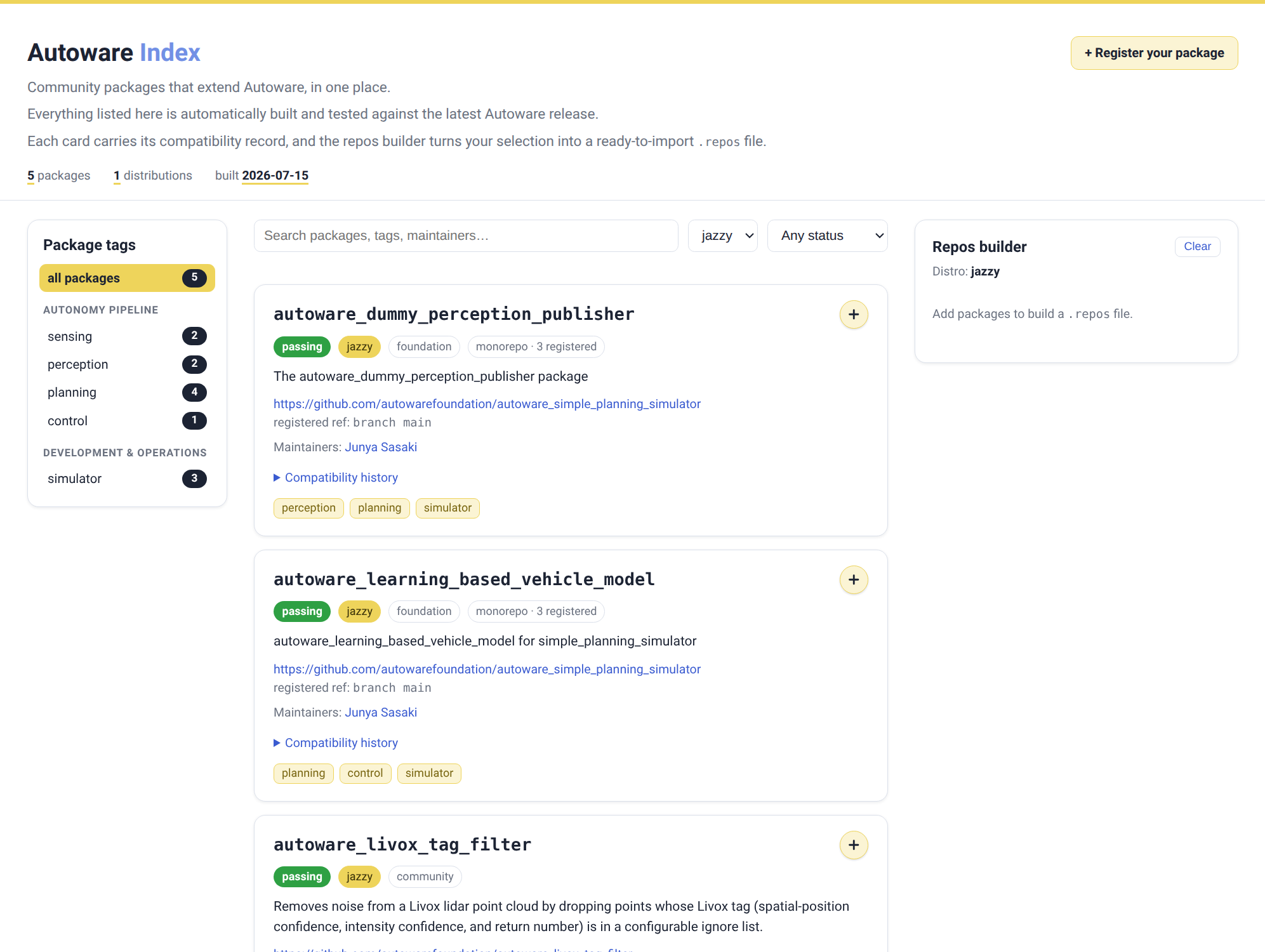

Using the browse site#

If you prefer not to install anything:

1. Pick your packages on the browse site.
2. Open the Repos builder panel and download your selection as autoware-index.repos.

3. Move the file into the repositories directory of your workspace and import it:

   cd autoware
   mv ~/Downloads/autoware-index.repos repositories/
   vcs import src < repositories/autoware-index.repos


Registering your packages#

To make your own packages available through the index, register them in the autoware-index repository:

• Use the guided register page. It writes the registry entry for you, runs the same checks as the pull request gate, and opens the pull request on your behalf.
• Or register by hand: fork the repository, add one entry under repositories: in distributions/<distro>.yaml for each distribution you support, and open a pull request.

After a registration is merged, CI builds and tests each registered package against the latest Autoware release and publishes the results on the browse site. Packages registered with a branch ref are re-validated nightly, while tag and sha refs stay pinned.

For the registry format, tag vocabulary, and validation rules, refer to the contribution guide.
